Wire Mesh Partitions

Wire Mesh Partitions

Additional information

Features & Benefits

  • Welded mesh panels with square wire mesh infill
  • Square steel posts with base plates with pre-drilled for fixing to concrete floor
  • Single or double doors which can be hinged or sliding
  • Different locking options available to suit your project
  • Strong & robust
  • Site survey & installation service available
  • CAD Drawings issued for approval before manufacture
  • Free no obligation quotation
  • Supplied with our 5-year manufacturer’s guarantee


Our free standing Wire Mesh Partitions are manufactured by us to provide secure storage, giving you peace of mind that your items are in a secure area. The open mesh design provides clear visibility, allowing you to see what is being stored, which is essential in security sensitive environments.

Wire mesh Partitions are used across many sectors including, construction, education, sports and leisure and air handling…just to name a few.

Our Mesh Partitions are typically used for:-

  • Basement storage

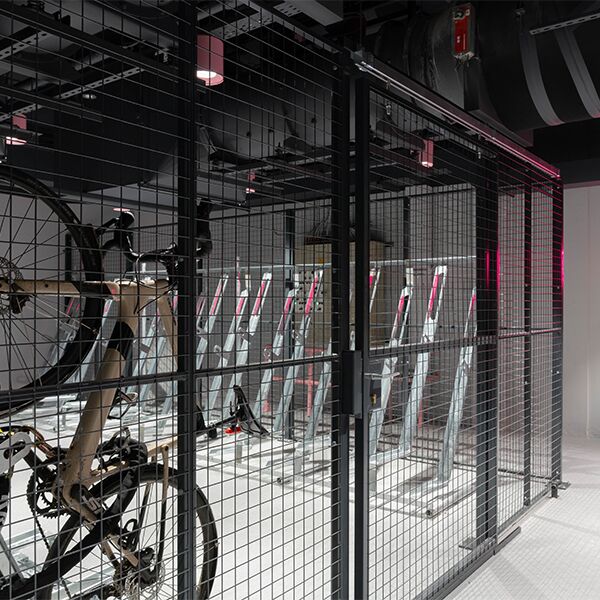

  • Cycle Storage
  • Apartment Storage for Tenants
  • Security sensitive environments
  • Machine guarding for robotic arms
  • Securing servers and computer software in data centres
  • Sectioning off areas in factories and warehouses
  • Racking safety


Our wire mesh Partitions have been created to offer a versatile system that is straight forward to install, whilst not effecting the robustness of the partition itself.

As our mesh Partitions are made to suit your requirements and specifications, this enables us to offer you the most cost-effective solution available to fulfil your wants and needs.

Steel wire mesh Partitions are available with Single or Double Doors. We can manufacture both hinged and sliding door sets with either a Euro Cylinder and Handle Lock or Slide Bolt Locking for use with your choice of Padlock. As we are the UK manufacturer, we can offer different locking options to suit your application such as, Digi Locks, Emergency Release Pads, mounting plates for your mag locks etc.

Here at AMP Wire, our mesh Partitions are strong, robust, made from UK Sourced materials and manufactured to the highest quality.

For a free quotation, email us or call our expert team on 0161 620 7250 to discuss your requirements.

By using AMP Wire, we will work closely with you so nothing gets lost in translation.

Benefits of our Mesh Partitions:-

  • provides clear visibility so you can see what is being stored
  • increases natural light
  • secure and robust construction
  • secure storage
  • quick and easy to install
  • facilitates sprinkler systems to aid fire safety
  • supplied with our manufacturers guarantee


Site Survey and Installation Service

AMP Wire also offer a Site Survey and Installation Service.

Our dedicated team of experienced surveyors and fitters work in our factory, so they have extensive knowledge of wire mesh products and the manufacturing processes. Our survey and installation teams are CSCS accredited (Construction Skills Certification Scheme) or have a CCNSG (Client Contractor National Safety Group) Safety Passport, meaning they are qualified as on-site supervisors during installations. A number of our fitters have DBS (Disclosure and Barring Service) clearance to enable them to work in schools and areas of restricted access. Our survey and installation service extends throughout the UK and Europe.

Please contact us for details and a for a free quotation


Welded mesh panels with infill of 50 x 50 x 3mm square wire mesh. Panels are made to suit layout

Mesh Size: 50mm x 50mm x 3mm

Tube Frame: 20mm x 30mm x 1.25mm

Panel to Panel to Post Fixings:

Zinc plated M8 bolts in pre-made fixing holes to the internal face for increased security


Square hollow section steel posts 50mm square with 100mm square base plates pre-drilled for bolt fixing to concrete floor. Maximum centres of posts, every 2-3 panels

Tube Post: 50 x 50 x 1.25mm

Delivery Information

The approximate lead time for our wire mesh Partitions depends on your requirements and specification.

Many of our products are entitled to Free Standard Mainland UK Delivery and without any restrictions.

This excludes the following Postcode Areas:- IV, AB, KW, HS, ZE, PA, PH, DD, IM, GY, JE, TR, BT, Isle of Wight, Isle of Anglesey and Eire. These Postcode areas will be subject to an additional charge, please contact us for a quotation before placing your order. If you have placed your order, we will advise you of the delivery cost and send you a Pro Forma Invoice.

Standard Delivery is Monday to Friday between 8am to 6pm and to ground floor / kerbside only unless agreed with AMP Wire Ltd in writing. If there are any delivery restrictions / specific dates / times / dedicated deliveries / above ground floor deliveries, or FORS Registered deliveries, please contact the sales department as there may be an additional cost.

We will deliver using the most economical method, either using our own vehicles or a carrier. Goods may be palletised and delivered on an articulate vehicle. The deliveries are kerb side only so you would need to arrange to unload the vehicle.

Returns Information

As this product is made to order, we are unable to accept returns, unless damaged.

Please check the delivery before signed as AMP Wire Ltd will not accept claims for damaged goods if the goods have been signed for. If an item is damaged upon receipt of delivery, please write “Damaged” on the carrier notes and call or email us within 24 hours (if you can add pictures to your email that would be helpful). Our Carriers will NOT accept claims if you sign for the goods or write “unchecked” etc, so please check before signing.

Please see our Delivery and Returns Policy for more information

Our wire mesh Partitions are manufactured to suit your specification.

From Customised dimensions to different materials and finishes…we can help!

Contact us now for a free quotation

To see a few examples of customised and bespoke products we have manufactured to suit our client’s requirements

View our Gallery
